JadeMaster 40S - Precision CNC Engraving System for Jade & Hard Materials

製品詳細

支払いと送料の条件

最高 の 価格 を 入手 する
ハイライト:
作業エリア(x/y/z):
410 x 410 x 140 mm
全体的な寸法:
900 x 730 x 1580 mm
スピンドルモーター:
1.5 kW、24000 rpm(空冷)
位置決めの精度:
±0.01 mm
リードネジの精度:
±0.02 mm
最大移動速度:
6000mm/min
ドライブシステム:
ステッピングモーター
制御システム:
Weihong 3軸DSPコントローラー
ツールの直径範囲:
Ø3 -Ø6mm
マシンネットウェイト:
〜270 kg
総電力:
2.4 KW
労働環境:
クランプフィクスチャー /接着剤
作業エリア(x/y/z):
410 x 410 x 140 mm
全体的な寸法:
900 x 730 x 1580 mm
スピンドルモーター:
1.5 kW、24000 rpm(空冷)
位置決めの精度:
±0.01 mm
リードネジの精度:
±0.02 mm
最大移動速度:
6000mm/min
ドライブシステム:
ステッピングモーター
制御システム:
Weihong 3軸DSPコントローラー
ツールの直径範囲:
Ø3 -Ø6mm
マシンネットウェイト:
〜270 kg
総電力:
2.4 KW
労働環境:
クランプフィクスチャー /接着剤

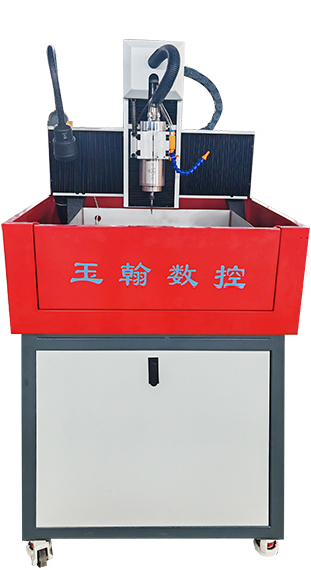

JadeMaster 40S - Precision CNC Engraving System for Jade & Hard Materials

Introduction

The JadeMaster 40S is a professional-grade CNC engraving machine meticulously designed for crafting jade, precious stones, and other demanding materials. It features a high-torque 1.5KW 24,000 RPM air-cooled spindle and achieves remarkable positioning accuracy of ±0.01mm, enabling the creation of intricate designs with flawless surface quality. Housed in a rigid, vibration-dampening structure, the machine offers a substantial work area of 410x410x140mm while maintaining a compact footprint. Integrated with a user-friendly Weihong 3-axis control system and powerful stepper drives, the JadeMaster 40S is the ultimate tool for jewelers, artists, and precision manufacturers seeking reliability and exceptional results.



Functional Characteristic

JadeMaster 40S: Where Precision Meets Power in Stone Carving

The JadeMaster 40S represents the pinnacle of accessible yet professional CNC technology for the ancient art of jade carving. Engineered for stability, accuracy, and ease of use, it transforms raw stone into exquisite works of art and precision components. The semi-enclosed chassis protects the operator and contains debris, making it suitable for a wide range of workshop environments.

Core Features & Advantages:

  • Uncompromising Precision: Achieve flawless detail with true ±0.01mm positioning accuracy and ±0.02mm lead screw precision, ensured by high-grade linear guides and robust construction.

  • High-Speed Spindle Performance: The powerful 1.5KW (24000 RPM) air-cooled spindle maintains constant torque at low speeds for smooth milling and effortlessly handles high-speed engraving, suitable for jade, composites, metals, and engineering plastics.

  • Rigid & Stable Platform: With a net weight of approximately 270kg, the heavy-duty cast and machined frame effectively absorbs vibrations, which is critical for achieving clean breaks and fine finishes on hard, brittle materials.

  • Intuitive Control System: The reliable Weihong 3-axis DSP control system is renowned for its user-friendly interface, supporting powerful yet straightforward operation for both simple and complex 3D patterns. It allows for adjustable feed rates from 0 to 6000mm/min.

  • Versatile Workholding: The machine supports multiple securing methods, including dedicated clamps for substitute wood bases and the use of adhesives, providing flexibility for various workpiece shapes and sizes.

  • Comprehensive Safety: The semi-enclosed design offers superior protection against flying chips and accidental contact, integrating safety into its core operation
